GerProcessingsCNC Machining

We produce precision parts mainly by the CNC - machining centers, CNC lathes, tapping and grinding machines. The machines and inspection devices we have are below:

Machines

 QTY

 Work Capacities (mm)

 CNC Lathes (-42)

 10

 Bar Material feed: Φ1-Φ42;   part D: Φ40-Φ250;
 Length: 1-500 mm;   Tolerance: + / 0,005 mm

 CNC MachiningCenters (3-Axis)

 3

 Working range (mm): 750x500

 CNC MachiningCenter (4-axis)

 1

 Working range (mm): 750X600

 Saw machines

 2



 Drilling machines

 5

 Φ0-20

Tapping machines

 5

 M1-M20

 Milling machines

 6

 Working range (mm): 800 X 500
 Tolerance: + / 0,005 mm

 OD grinding machine

 1

 Working range (mm) :8-320
 Tolerance: + / -0,005

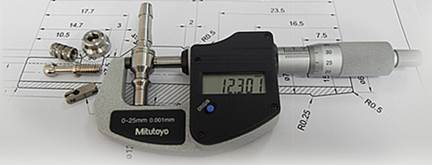

 Inspection-Tools



 Projector, 3D-Mess-Tool, Lehren und Tester



http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/201211191132598849767.JPG

http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/2012111912416565074.jpg

http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/20121119124341505793.jpg

Locking Part

POM Machining

Steel Plate

http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/201110271731472514654.jpg

http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/2012222184246787852.jpg

http://www.xymetalworks.com/UploadFile/ImgInfo/ImgInfoBre/20111027171484357572.jpg

Alu Clamping

Heat Sinks

Alu Milling
